Nichicon The displayed price is for reference only; please contact 【customer service】 for the actual price (actually 2-3 times lower, globally competitive, price guaranteed for bulk purchases)

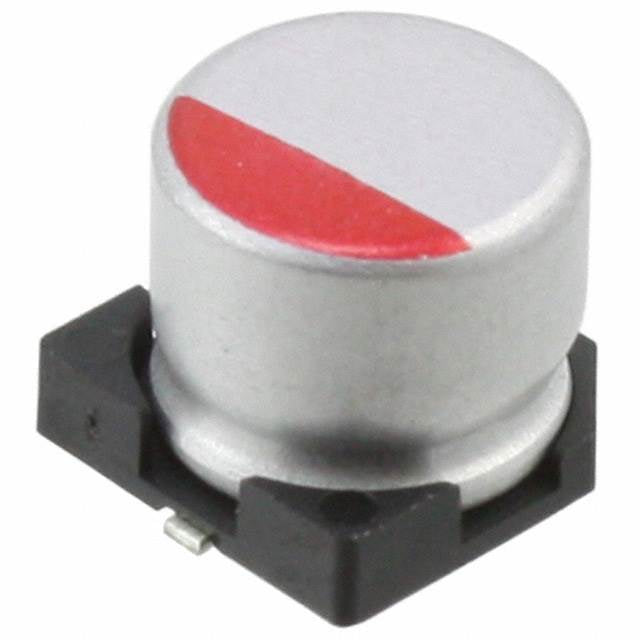

RPS1A470MCN1GS

RPS1A470MCN1GS

CAP ALUM POLY 47UF 20% 10V SMD

View full details

Technical Specifications

Download Specification
Product Specifications
Package Tape & Reel (TR);Cut Tape (CT);Digi-Reel®
Product Status Active
Type Polymer
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) 40mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 210 mA @ 120 Hz
Ripple Current @ High Frequency 2.1 A @ 100 kHz
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.224" (5.70mm)
Surface Mount Land Size 0.256" L x 0.256" W (6.50mm x 6.50mm)
Mounting Type Surface Mount
Package / Case
  • Radial
  • Can - SMD
