Nichicon The displayed price is for reference only; please contact 【customer service】 for the actual price (actually 2-3 times lower, globally competitive, price guaranteed for bulk purchases)

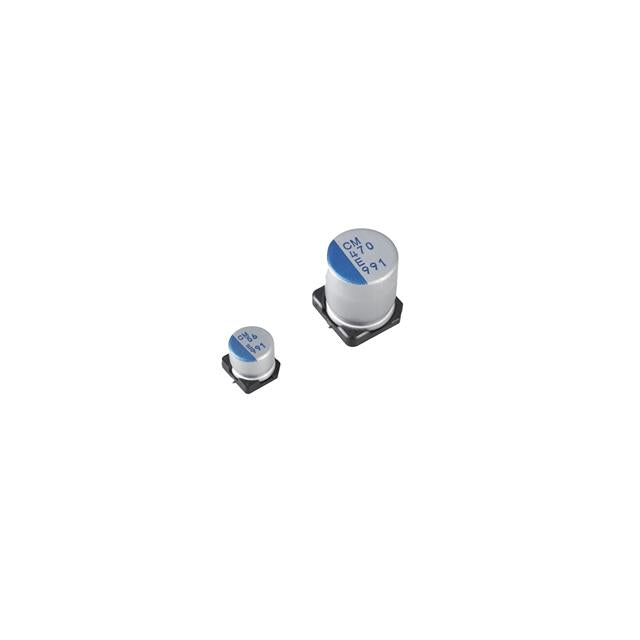

PCM1H390MCL1GS

PCM1H390MCL1GS

CAP ALUM POLY 39UF 20% 50V SMD

View full details

Technical Specifications

Download Specification
Product Specifications
Package Tape & Reel (TR);Cut Tape (CT);Digi-Reel®
Product Status Active
Type Polymer
Capacitance 39 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 45mOhm
Lifetime @ Temp. 8000 Hrs @ 125°C
Operating Temperature -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 80 mA @ 120 Hz
Ripple Current @ High Frequency 1.6 A @ 100 kHz
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.295" (7.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case
  • Radial
  • Can - SMD
