Chemi-Con The displayed price is for reference only; please contact 【customer service】 for the actual price (actually 2-3 times lower, globally competitive, price guaranteed for bulk purchases)

HHSE630ELL101MJC5S

HHSE630ELL101MJC5S

CAP ALUM HYBRID 100UF 20% 63V TH

View full details

Technical Specifications

Download Specification
Product Specifications
Package Bulk
Product Status Active
Type Hybrid
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) 20mOhm
Lifetime @ Temp. 4000 Hrs @ 135°C
Operating Temperature -55°C ~ 135°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 340 mA @ 120 Hz
Ripple Current @ High Frequency 3.4 A @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.551" (14.00mm)
Mounting Type Through Hole

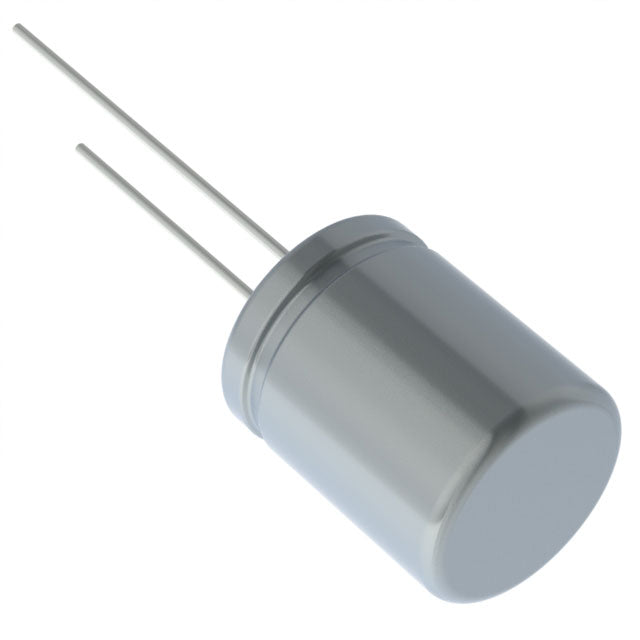

Package / Case
  • Radial
  • Can
Download Specification
