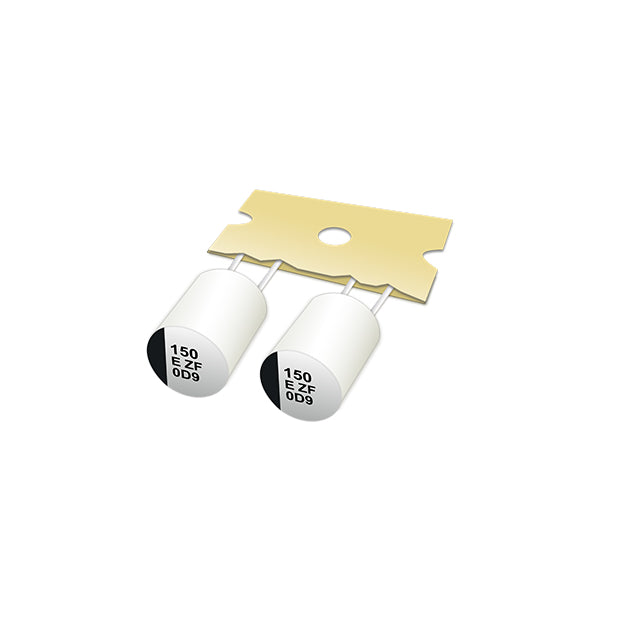

EEH-AZF1H560B

EEH-AZF1H560B

CAP ALUM HYBRID 56UF 20% 50V TH

View full details

Technical Specifications

Download Specification
Product Specifications
Package Cut Tape (CT);Tape & Box (TB)
Product Status Active
Type Hybrid
Capacitance 56 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 35mOhm
Lifetime @ Temp. 1000 Hrs @ 150°C
Operating Temperature -55°C ~ 150°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 105 mA @ 100 Hz
Ripple Current @ High Frequency 700 mA @ 100 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Mounting Type Through Hole
Package / Case
  • Radial
  • Can
