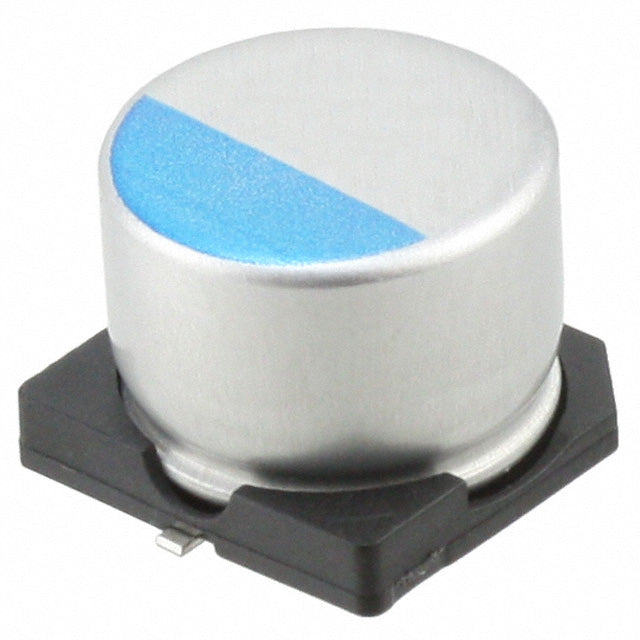

APXE100ARA471MJ80G

APXE100ARA471MJ80G

CAP ALUM POLY 470UF 20% 10V SMD

View full details

Technical Specifications

Download Specification
Product Specifications
Package Tape & Reel (TR);Cut Tape (CT);Digi-Reel®
Product Status Active
Type Polymer
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) 19mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 3.8 A @ 100 kHz
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.303" (7.70mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case
  • Radial
  • Can - SMD
