A759KK336M1JAAE036

A759KK336M1JAAE036

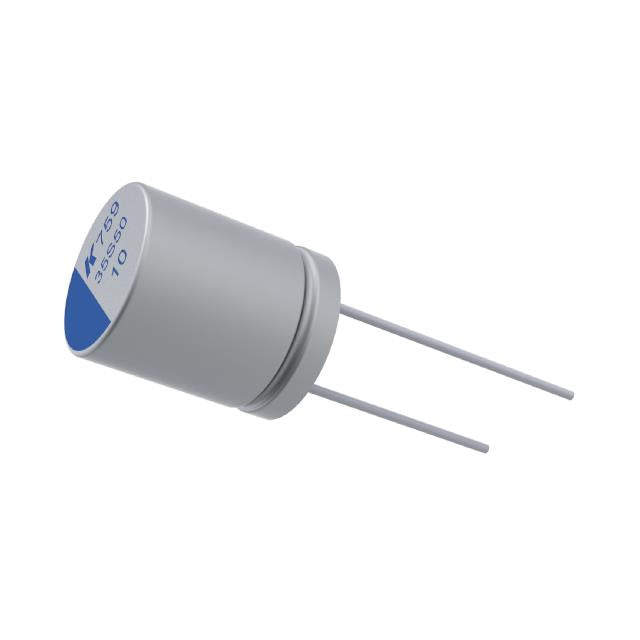

CAP ALUM POLY 33UF 20% 63V TH

View full details

Technical Specifications

Download Specification
Product Specifications
Package Tape & Box (TB)
Product Status Active
Type Polymer
Capacitance 33 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) 36mOhm
Lifetime @ Temp. 2000 Hrs @ 125°C
Operating Temperature -55°C ~ 125°C
Applications General Purpose
Ripple Current @ Low Frequency 136 mA @ 120 Hz
Ripple Current @ High Frequency 2.72 A @ 100 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.354" (9.00mm)
Mounting Type Through Hole
Package / Case
  • Radial
  • Can
