A750MW128M1EAAE014

A750MW128M1EAAE014

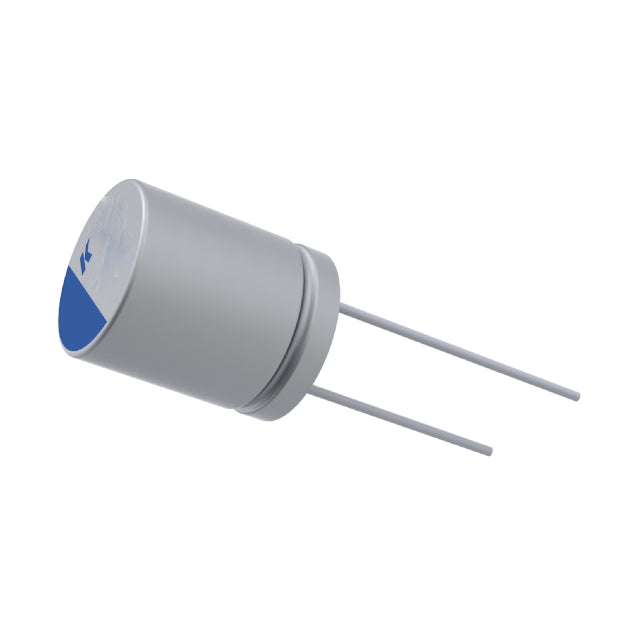

CAP ALUM POLY 1200UF 20% 25V TH

View full details

Technical Specifications

Download Specification
Product Specifications
Package Bulk
Product Status Active
Type Polymer
Capacitance 1200 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 14mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 295.5 mA @ 120 Hz
Ripple Current @ High Frequency 5.91 A @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.709" (18.00mm)
Mounting Type Through Hole
Package / Case
  • Radial
  • Can
