35SVPK82M

35SVPK82M

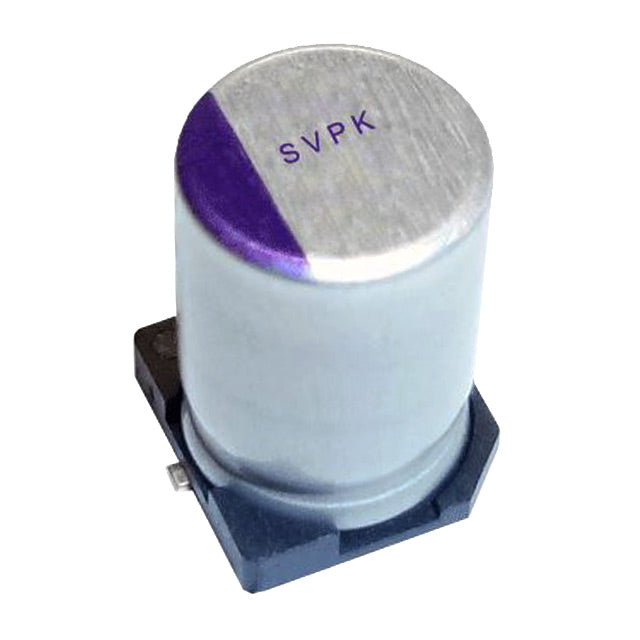

CAP ALUM POLY 82UF 20% 35V SMD

View full details

Technical Specifications

Download Specification
Product Specifications
Package Tape & Reel (TR);Cut Tape (CT);Digi-Reel®
Product Status Active
Type Polymer
Capacitance 82 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) 25mOhm
Lifetime @ Temp. 1000 Hrs @ 125°C
Operating Temperature -55°C ~ 125°C
Applications General Purpose
Ripple Current @ Low Frequency 48 mA @ 120 Hz
Ripple Current @ High Frequency 960 mA @ 100 kHz
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.276" (7.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case
  • Radial
  • Can - SMD
Download Specification
