Panasonic Electronic Components The displayed price is for reference only; please contact 【customer service】 for the actual price (actually 2-3 times lower, globally competitive, price guaranteed for bulk purchases)

2SEPC820MW

2SEPC820MW

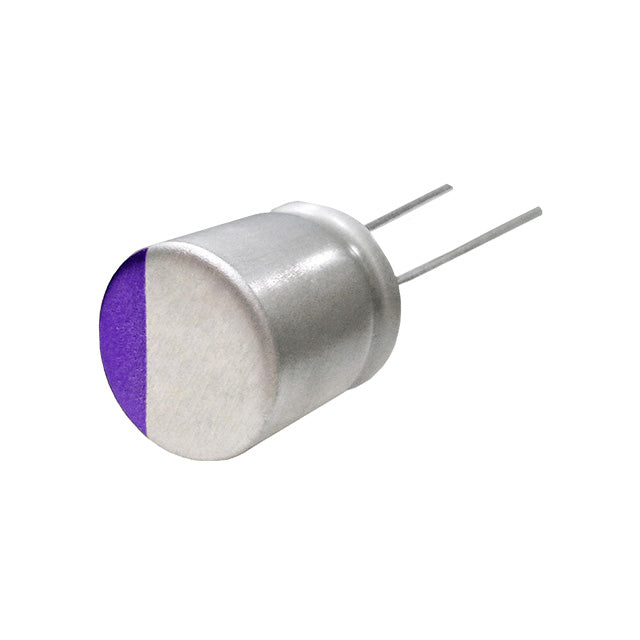

CAP ALUM POLY 820UF 20% 2.5V TH

View full details

Technical Specifications

Download Specification
Product Specifications
Package Bulk
Product Status Active
Type Polymer
Capacitance 820 µF
Tolerance ±20%
Voltage - Rated 2.5 V
ESR (Equivalent Series Resistance) 7mOhm
Lifetime @ Temp. 5000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 280 mA @ 120 Hz
Ripple Current @ High Frequency 5.6 A @ 100 kHz
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.354" (9.00mm)
Mounting Type Through Hole
Package / Case
  • Radial
  • Can
Download Specification
