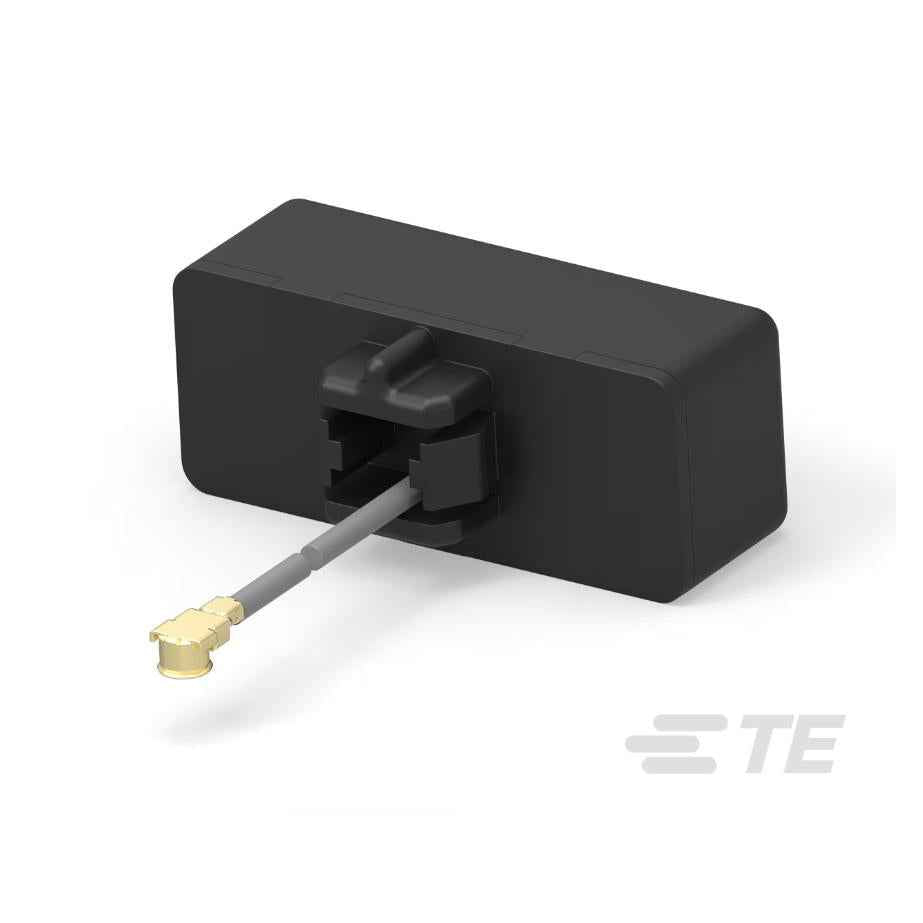

1-2195935-1

Download the specification sheet
Product Specifications
Package	Bulk
Product Status	Active
RF Family/Standard	802.15.4 Bluetooth WiFi
Frequency Group	Wide Band
Frequency (Center/Band)	2.45GHz 5.5125GHz 6.525GHz
Frequency Range	2.4GHz ~ 2.5GHz 5.15GHz ~ 5.875GHz 5.925GHz ~ 7.125GHz
Antenna Type	Module
Number of Bands	3
VSWR	1.8 2.3 3.5
Gain	0.1dBi 2.8dBi 4dBi
Power - Max	10 W
Features	Cable - 90mm
Termination	MHF4L
Mounting Type	Snap-In
Height (Max)	0.472" (12.00mm)
Applications	Bluetooth Wi-Fi Zigbee™
