Technical Specifications
| Download the specification sheet | |
| Product Specifications | |
|---|---|
| Package | Bulk |
| Product Status | Active |

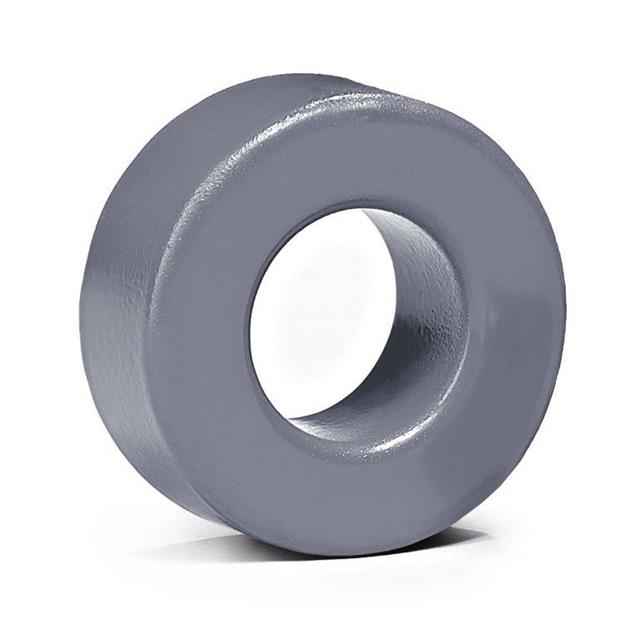

| Core Type | Toroid |
| Material | W |
| Diameter | 2.402" (61.00mm) |
| Inductance Factor (Al) | 13.69 µH |
| Tolerance | ±30% |
| Gap | Ungapped |
| Initial Permeability (µi) | 10000 |
| Effective Length (le) mm | 145.0 |
| Effective Area (Ae) mm² | 157.0 |
| Effective Magnetic Volume (Ve) mm³ | 22774.0 |
| Finish | Uncoated |
| Height | 0.500" (12.70mm) |
