Technical Specifications
| Download the specification sheet | |
| Product Specifications | |
|---|---|
| Package | Bulk |
| Product Status | Active |

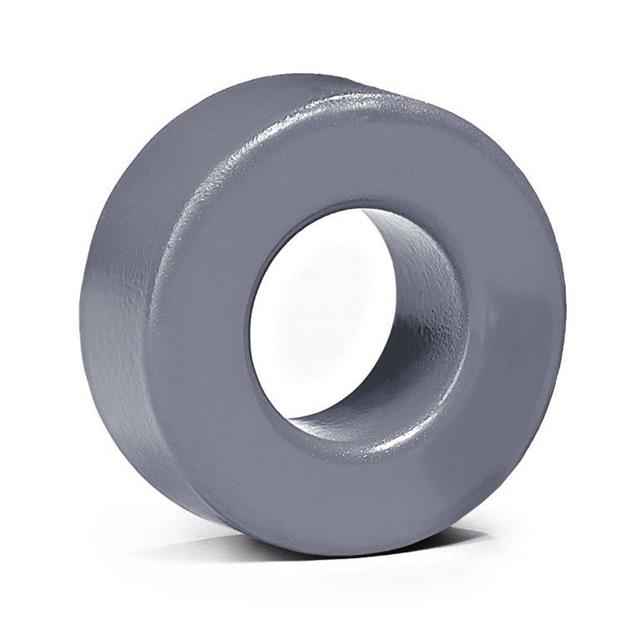

| Core Type | Toroid |
| Material | W |
| Diameter | 1.933" (49.10mm) |
| Inductance Factor (Al) | 11.8 µH |
| Tolerance | ±30% |
| Gap | Ungapped |
| Initial Permeability (µi) | 10000 |
| Effective Length (le) mm | 127.0 |
| Effective Area (Ae) mm² | 118.0 |
| Effective Magnetic Volume (Ve) mm³ | 15010.0 |
| Finish | Uncoated |
| Height | 0.626" (15.90mm) |
