Technical Specifications
| Download the specification sheet | |
| Product Specifications | |
|---|---|
| Package | Bulk |
| Product Status | Active |

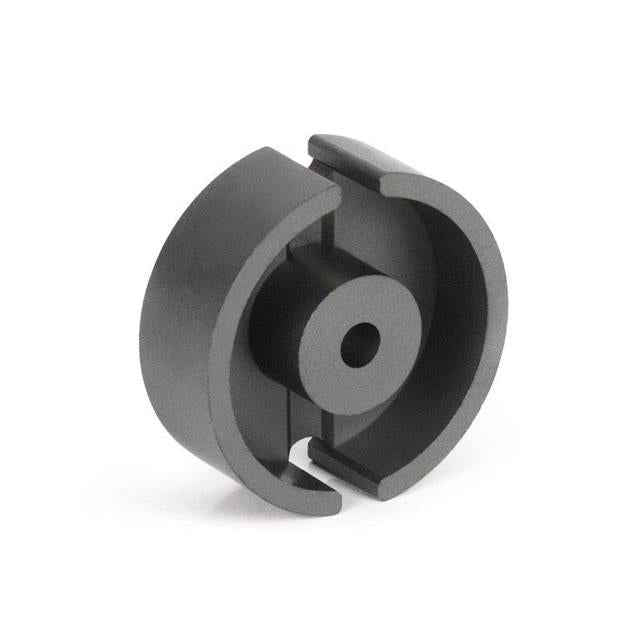

| Core Type | P |
| Diameter | 1.181" (30.00mm) |
| Inductance Factor (Al) | 7 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Initial Permeability (µi) | 2300 |
| Effective Length (le) mm | 45.2 |
| Effective Area (Ae) mm² | 137.0 |
| Effective Magnetic Volume (Ve) mm³ | 6190.0 |
| Finish | Uncoated |
| Height | 0.744" (18.90mm) |
