Technical Specifications
| Download the specification sheet | |
| Product Specifications | |
|---|---|
| Package | Bulk |
| Product Status | Active |

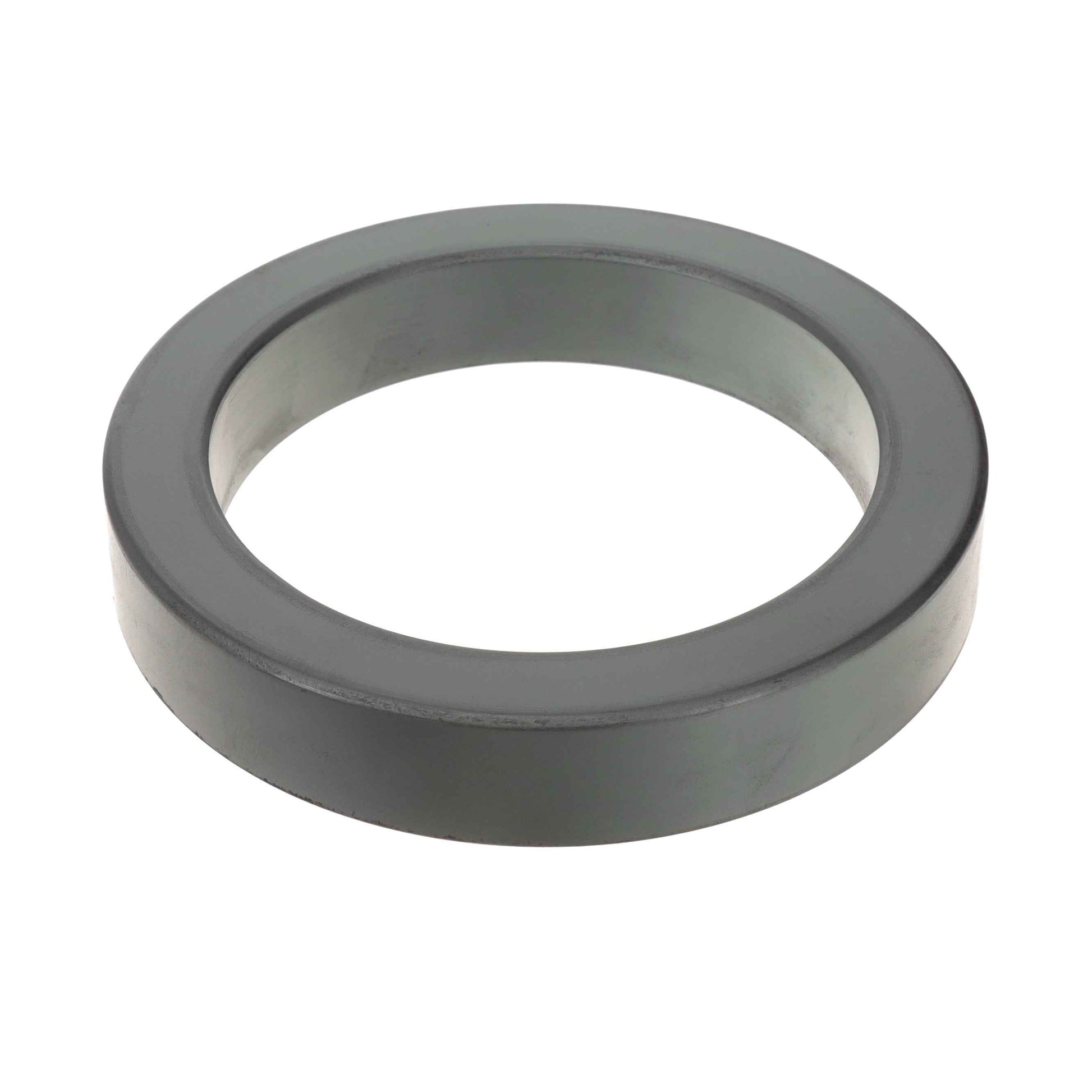

| Core Type | Toroid |
| Material | R |
| Diameter | 5.512" (140.00mm) |
| Inductance Factor (Al) | 3.2 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Initial Permeability (µi) | 2300 |
| Effective Length (le) mm | 381.5 |
| Effective Area (Ae) mm² | 422.3 |
| Effective Magnetic Volume (Ve) mm³ | 161086.0 |
| Finish | Uncoated |
| Height | 0.984" (25.00mm) |
