Technical Specifications
| Download the specification sheet | |
| Product Specifications | |
|---|---|
| Package | Bulk |
| Product Status | Active |

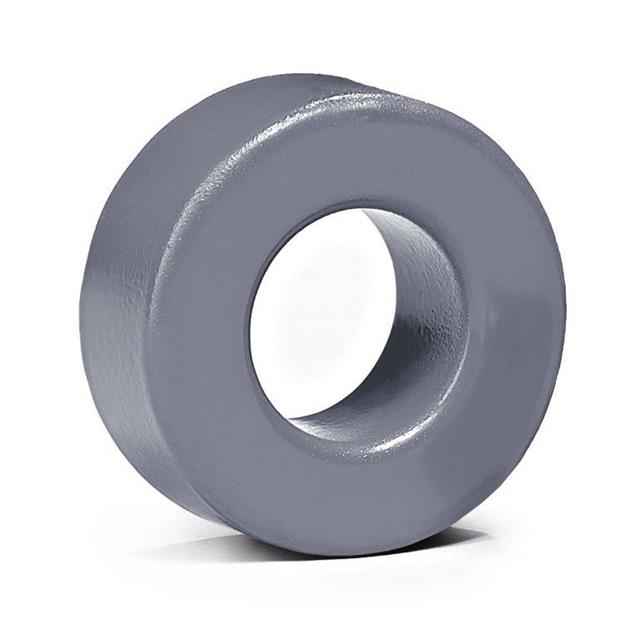

| Core Type | Toroid |
| Material | P |
| Diameter | 2.902" (73.70mm) |
| Inductance Factor (Al) | 4.024 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Initial Permeability (µi) | 2500 |
| Effective Length (le) mm | 165.0 |
| Effective Area (Ae) mm² | 210.0 |
| Effective Magnetic Volume (Ve) mm³ | 34771.0 |
| Finish | Uncoated |
| Height | 0.492" (12.50mm) |
