Technical Specifications
| Download the specification sheet | |
| Product Specifications | |
|---|---|
| Package | Bulk |
| Product Status | Active |

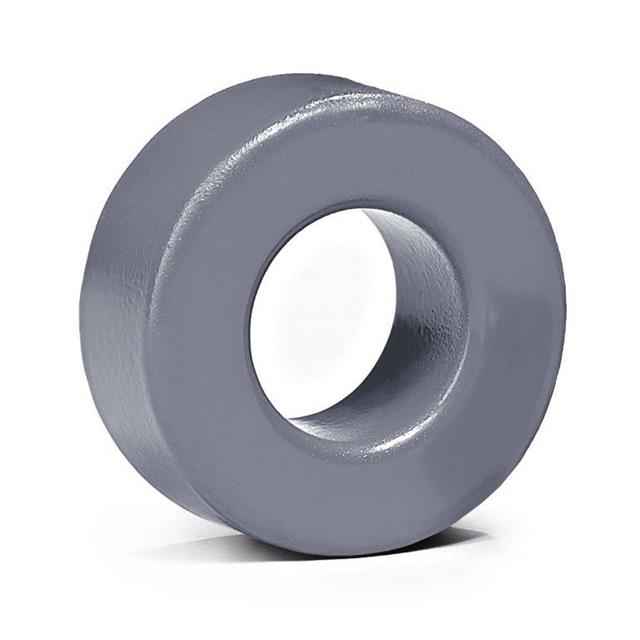

| Core Type | Toroid |
| Diameter | 1.500" (38.10mm) |
| Inductance Factor (Al) | 10.04 µH |
| Tolerance | ±20% |
| Gap | Ungapped |
| Initial Permeability (µi) | 3000 |
| Effective Length (le) mm | 82.8 |
| Effective Area (Ae) mm² | 231.0 |
| Effective Magnetic Volume (Ve) mm³ | 19304.0 |
| Finish | Uncoated |
| Height | 1.000" (25.40mm) |
