Technical Specifications
| Download the specification sheet | |
| Product Specifications | |
|---|---|
| Package | Bulk |
| Product Status | Active |

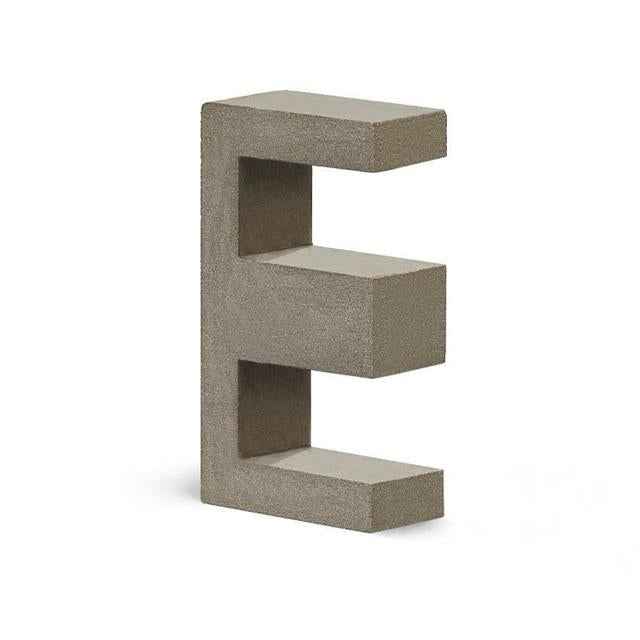

| Core Type | E |
| Material | XFlux |
| Inductance Factor (Al) | 230 nH |
| Tolerance | ±8% |
| Gap | Ungapped |
| Initial Permeability (µi) | 40 |
| Effective Length (le) mm | 147.0 |
| Effective Area (Ae) mm² | 540.0 |
| Effective Magnetic Volume (Ve) mm³ | 79400.0 |
| Finish | Uncoated |
| Height | 1.280" (32.51mm) |
| Length | 2.579" (65.51mm) |
| Width | 1.063\ |
