Technical Specifications
| Download the specification sheet | |
| Product Specifications | |
|---|---|
| Package | Bulk |
| Product Status | Active |

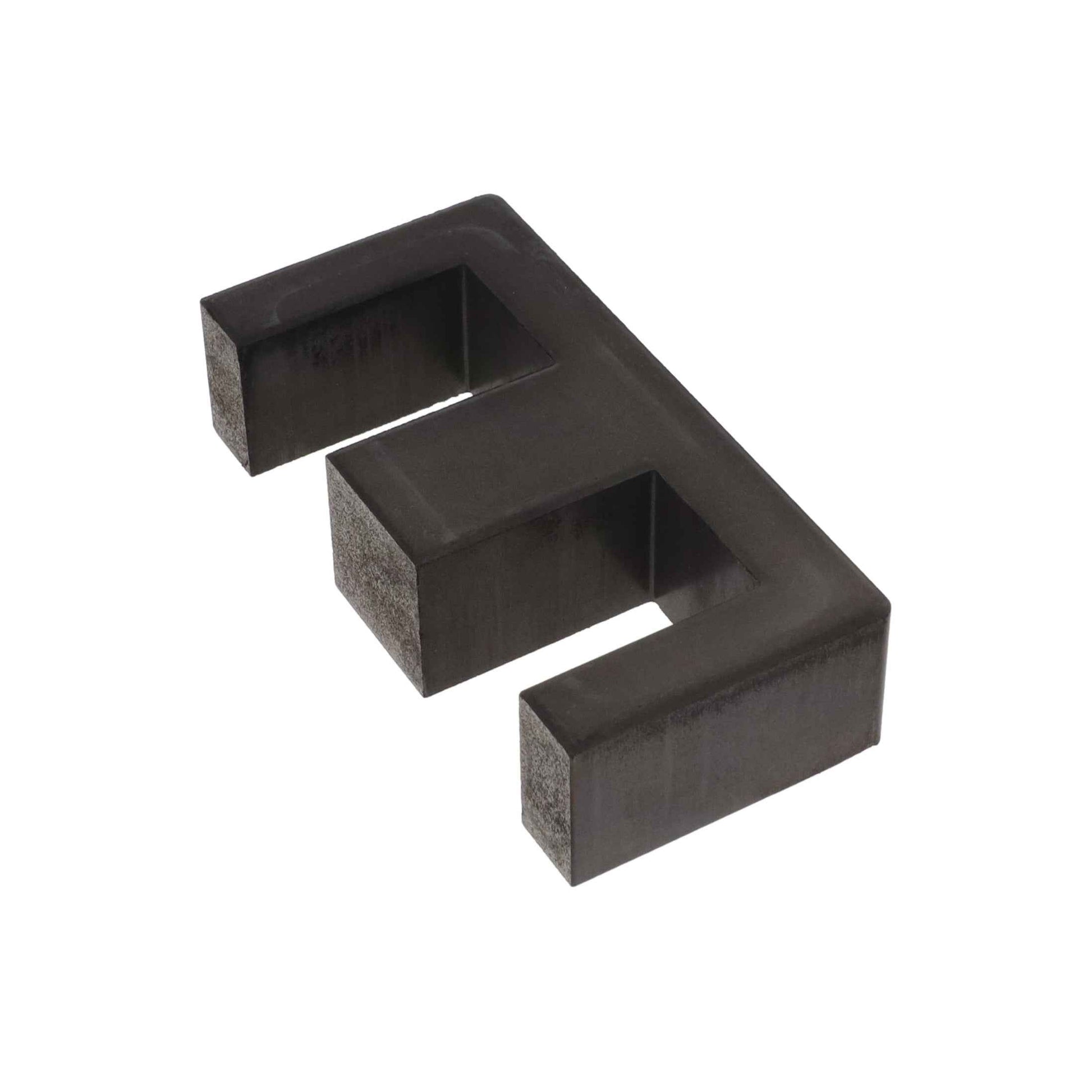

| Core Type | E |
| Inductance Factor (Al) | 103 nH |
| Tolerance | ±8% |
| Gap | Gapped |
| Initial Permeability (µi) | 26 |
| Effective Length (le) mm | 185.0 |
| Effective Area (Ae) mm² | 389.0 |
| Effective Magnetic Volume (Ve) mm³ | 72000.0 |
| Finish | Uncoated |
| Height | 1.500" (38.10mm) |
| Length | 3.150" (80.00mm) |
| Width | 3.150\ |
