Technical Specifications
| Download the specification sheet | |
| Product Specifications | |
|---|---|
| Package | Bulk |
| Product Status | Active |

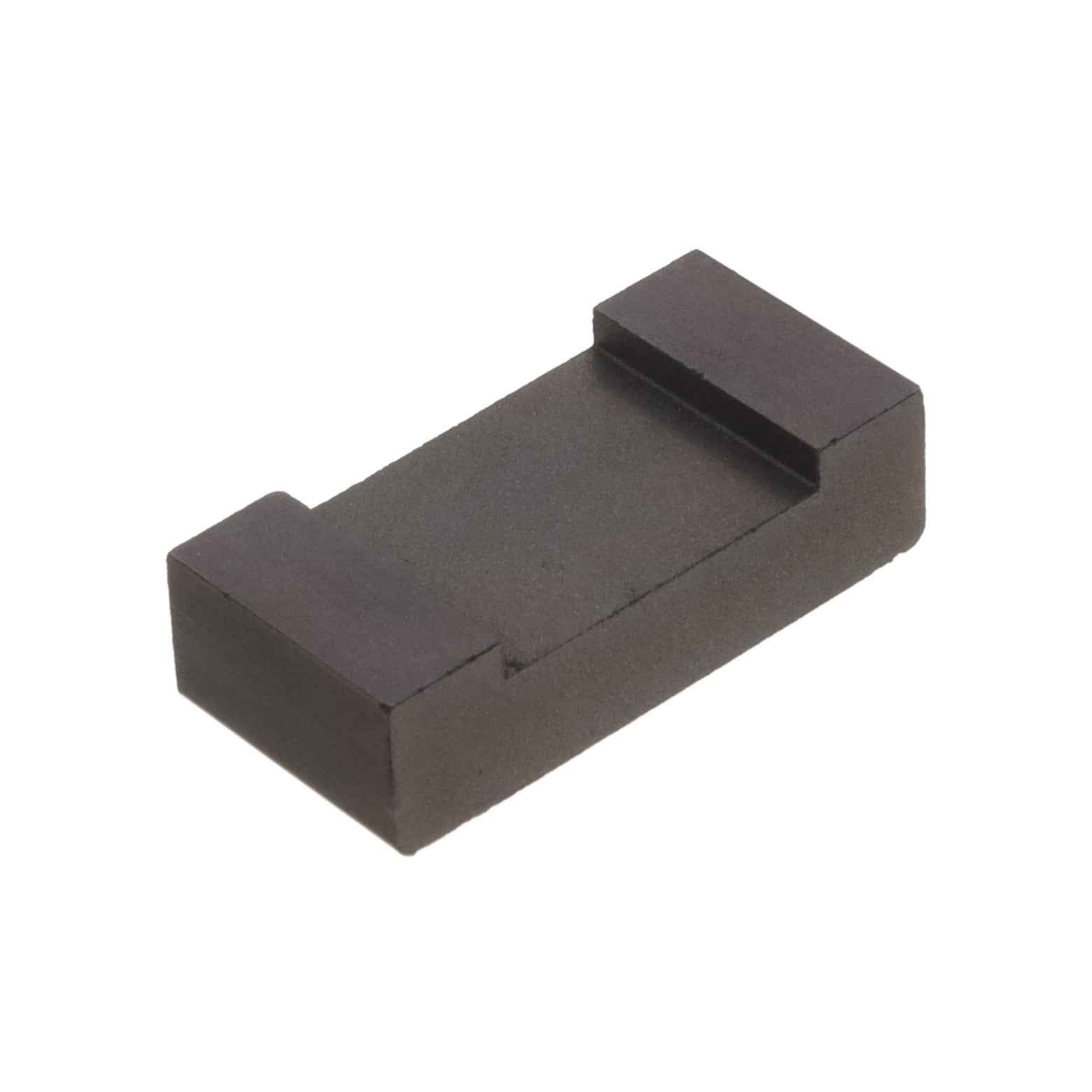

| Core Type | U |
| Material | Kool Mu |
| Inductance Factor (Al) | 218 nH |
| Tolerance | ±8% |
| Gap | Ungapped |
| Initial Permeability (µi) | 90 |
| Effective Length (le) mm | 85.2 |
| Effective Area (Ae) mm² | 160.0 |
| Effective Magnetic Volume (Ve) mm³ | 13630.0 |
| Finish | Uncoated |
| Height | 0.440" (11.18mm) |
| Length | 1.600" (40.64mm) |
| Width | 0.750\ |
