Technical Specifications
| Download the specification sheet | |
| Product Specifications | |
|---|---|
| Package | Bulk |
| Product Status | Active |

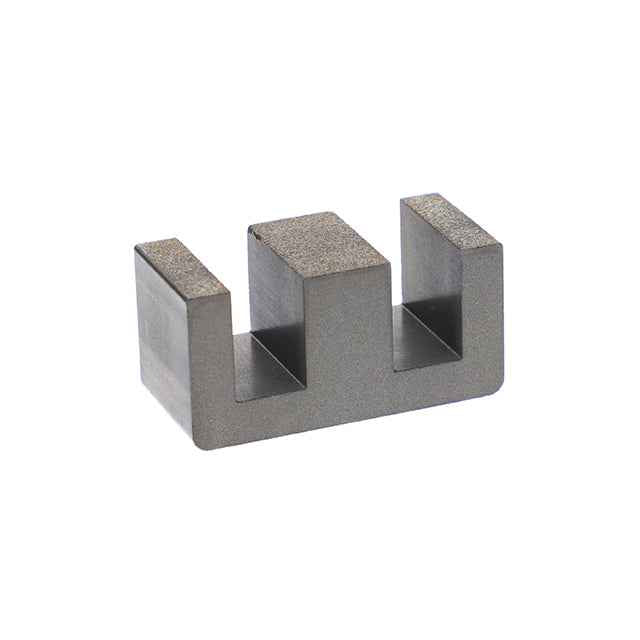

| Core Type | E |
| Material | Kool Mu |
| Inductance Factor (Al) | 194 nH |
| Tolerance | ±8% |
| Gap | Ungapped |
| Initial Permeability (µi) | 60 |
| Effective Length (le) mm | 98.4 |
| Effective Area (Ae) mm² | 237.0 |
| Effective Magnetic Volume (Ve) mm³ | 23300.0 |
| Finish | Uncoated |
| Height | 0.830" (21.08mm) |
| Length | 1.687" (42.85mm) |
| Width | 0.787\ |
