Technical Specifications
| Download the specification sheet | |
| Product Specifications | |
|---|---|
| Package | Bulk |
| Product Status | Active |

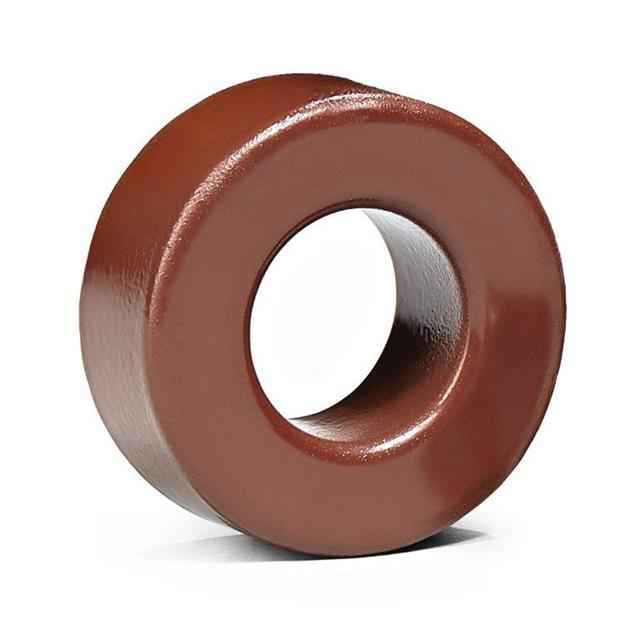

| Core Type | Toroid |
| Material | XFlux |
| Diameter | 2.677" (68.00mm) |
| Inductance Factor (Al) | 143 nH |
| Tolerance | ±8% |
| Gap | Ungapped |
| Initial Permeability (µi) | 60 |
| Effective Length (le) mm | 158.0 |
| Effective Area (Ae) mm² | 314.0 |
| Effective Magnetic Volume (Ve) mm³ | 49700.0 |
| Finish | Coated |
| Height | 0.787" (20.00mm) |
