Technical Specifications
| Download the specification sheet | |
| Product Specifications | |
|---|---|
| Package | Bulk |
| Product Status | Active |

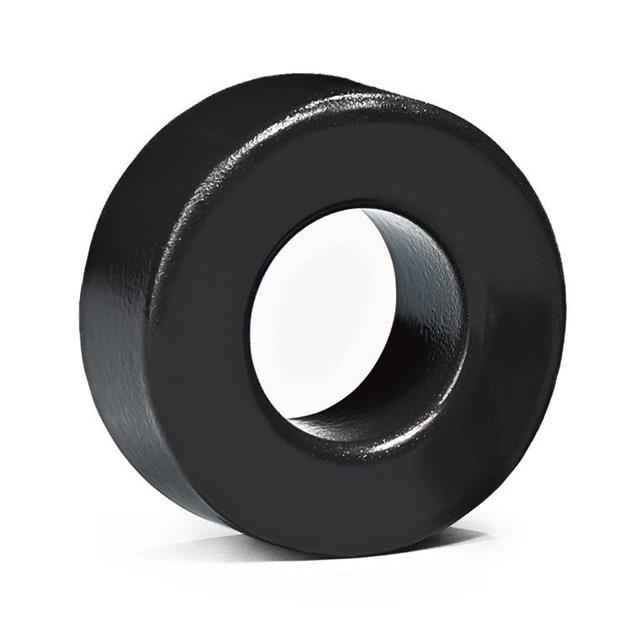

| Core Type | Toroid |
| Material | Kool Mu HF |
| Diameter | 1.090" (27.69mm) |
| Inductance Factor (Al) | 75 nH |
| Tolerance | ±8% |
| Gap | Ungapped |
| Initial Permeability (µi) | 60 |
| Effective Length (le) mm | 63.5 |
| Effective Area (Ae) mm² | 65.4 |
| Effective Magnetic Volume (Ve) mm³ | 4150.0 |
| Finish | Coated |
| Height | 0.470" (11.94mm) |
