Technical Specifications
| Download the specification sheet | |
| Product Specifications | |
|---|---|
| Package | Bulk |
| Product Status | Active |

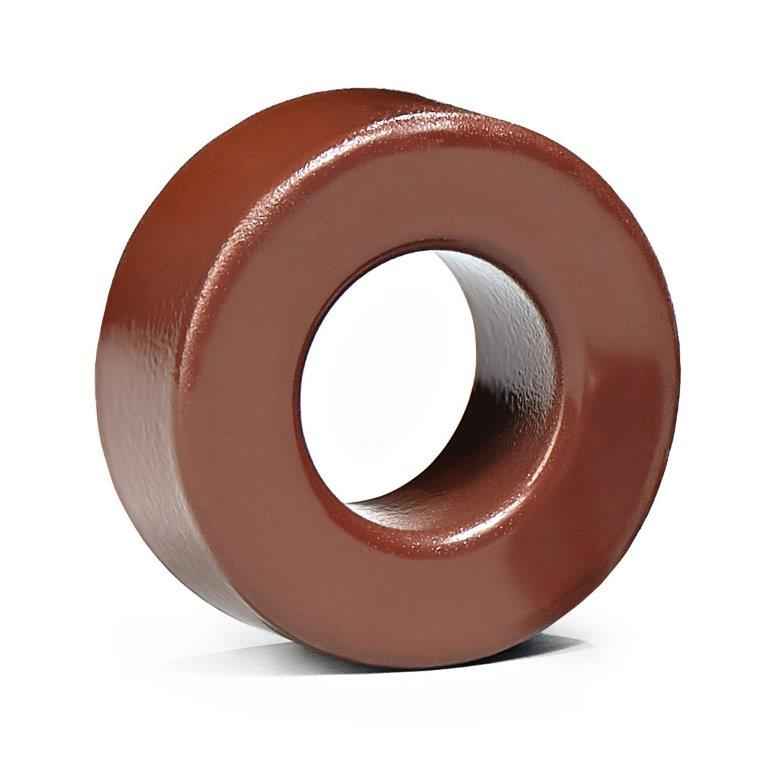

| Core Type | Toroid |
| Material | X FLUX ULTRA |
| Diameter | 3.063" (77.80mm) |
| Inductance Factor (Al) | 209 nH |
| Tolerance | ±8% |
| Gap | Ungapped |
| Initial Permeability (µi) | 60 |
| Effective Length (le) mm | 177.0 |
| Effective Area (Ae) mm² | 492.0 |
| Effective Magnetic Volume (Ve) mm³ | 87100.0 |
| Finish | Uncoated |
| Height | 1.018" (25.86mm) |
