Technical Specifications
| Download the specification sheet | |
| Product Specifications | |
|---|---|
| Package | Bulk |
| Product Status | Active |

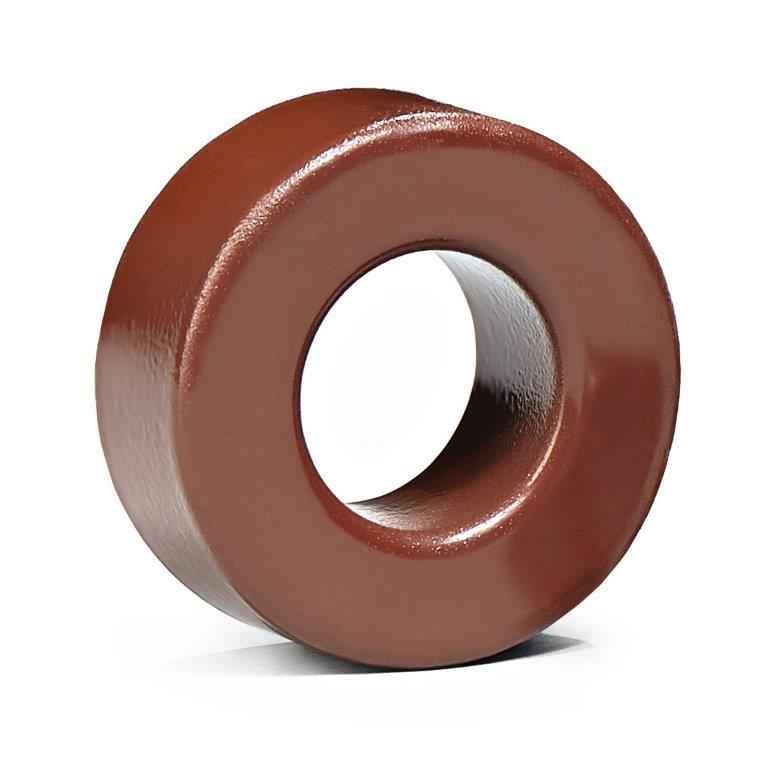

| Core Type | Toroid |
| Material | X FLUX ULTRA |
| Diameter | 2.250" (57.15mm) |
| Inductance Factor (Al) | 76 nH |
| Tolerance | ±8% |
| Gap | Ungapped |
| Initial Permeability (µi) | 60 |
| Effective Length (le) mm | 143.0 |
| Effective Area (Ae) mm² | 144.0 |
| Effective Magnetic Volume (Ve) mm³ | 20700.0 |
| Finish | Uncoated |
| Height | 0.550" (13.97mm) |
