Technical Specifications
| Download the specification sheet | |
| Product Specifications | |
|---|---|
| Package | Bulk |
| Product Status | Active |

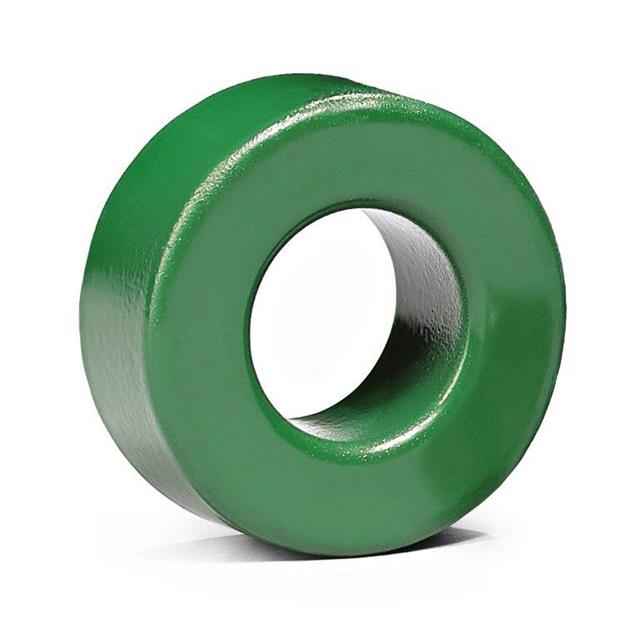

| Core Type | Toroid |
| Material | Edge |
| Diameter | 0.830" (21.08mm) |
| Inductance Factor (Al) | 32 nH |
| Gap | Ungapped |
| Initial Permeability (µi) | 60 |
| Effective Length (le) mm | 50.9 |
| Effective Area (Ae) mm² | 22.1 |
| Effective Magnetic Volume (Ve) mm³ | 1120.0 |
| Finish | Coated |
| Height | 0.280" (7.11mm) |
