Technical Specifications
| Download the specification sheet | |
| Product Specifications | |
|---|---|
| Package | Bulk |
| Product Status | Active |

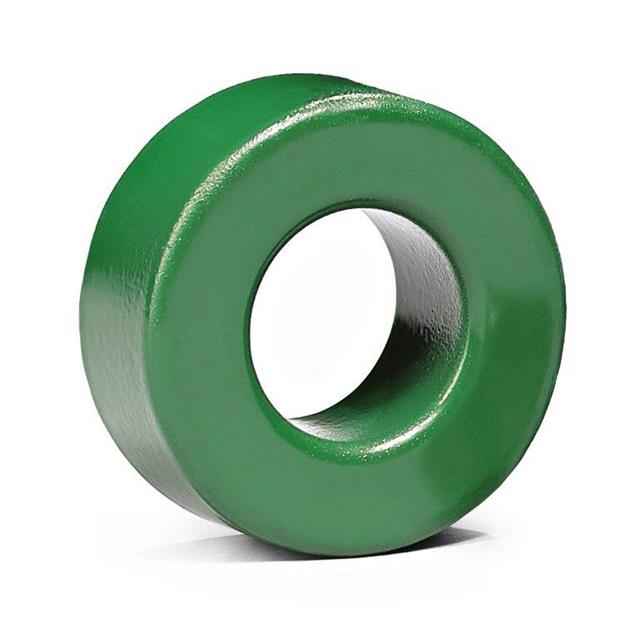

| Core Type | Toroid |
| Material | Edge |
| Diameter | 0.653" (16.59mm) |
| Inductance Factor (Al) | 72 nH |
| Tolerance | ±8% |
| Gap | Ungapped |
| Initial Permeability (µi) | 125 |
| Effective Length (le) mm | 41.2 |
| Effective Area (Ae) mm² | 19.2 |
| Effective Magnetic Volume (Ve) mm³ | 791.0 |
| Finish | Coated |
| Height | 0.250" (6.35mm) |
