Technical Specifications
| Download the specification sheet | |
| Product Specifications | |
|---|---|
| Package | Bulk |
| Product Status | Active |

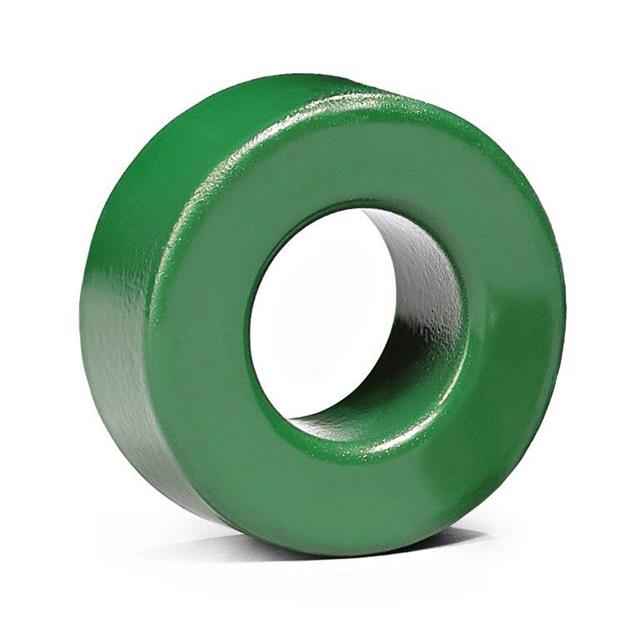

| Core Type | Toroid |
| Material | Edge |
| Diameter | 1.445" (36.70mm) |
| Inductance Factor (Al) | 56 nH |
| Gap | Ungapped |
| Initial Permeability (µi) | 60 |
| Effective Length (le) mm | 89.8 |
| Effective Area (Ae) mm² | 67.8 |
| Effective Magnetic Volume (Ve) mm³ | 6090.0 |
| Finish | Coated |
| Height | 0.447" (11.35mm) |
