Technical Specifications
| Download the specification sheet | |
| Product Specifications | |
|---|---|
| Package | Bulk |
| Product Status | Active |

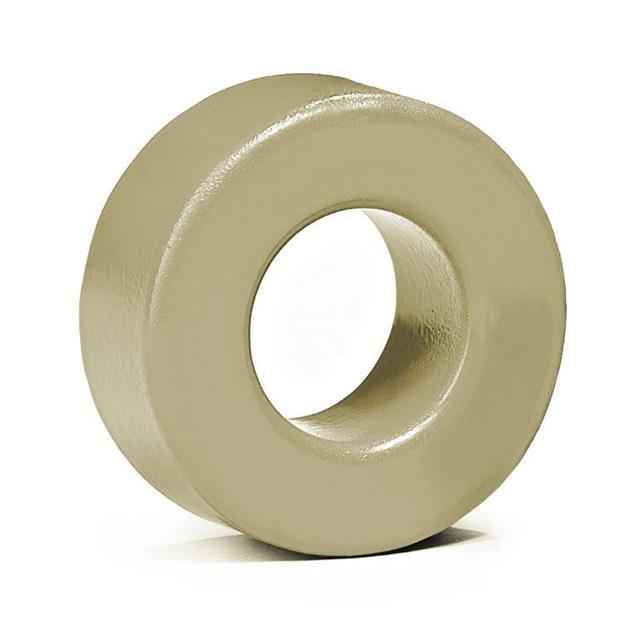

| Core Type | Toroid |
| Diameter | 1.839" (46.70mm) |
| Inductance Factor (Al) | 59 nH |
| Tolerance | ±8% |
| Gap | Ungapped |
| Initial Permeability (µi) | 26 |
| Effective Length (le) mm | 107.0 |
| Effective Area (Ae) mm² | 199.0 |
| Minimum Core Cross Section (Amin) mm² | 427.0 |
| Effective Magnetic Volume (Ve) mm³ | 21300.0 |
| Finish | Coated |
| Height | 0.709" (18.00mm) |
