Technical Specifications
| Download the specification sheet | |
| Product Specifications | |
|---|---|
| Package | Bulk |
| Product Status | Active |

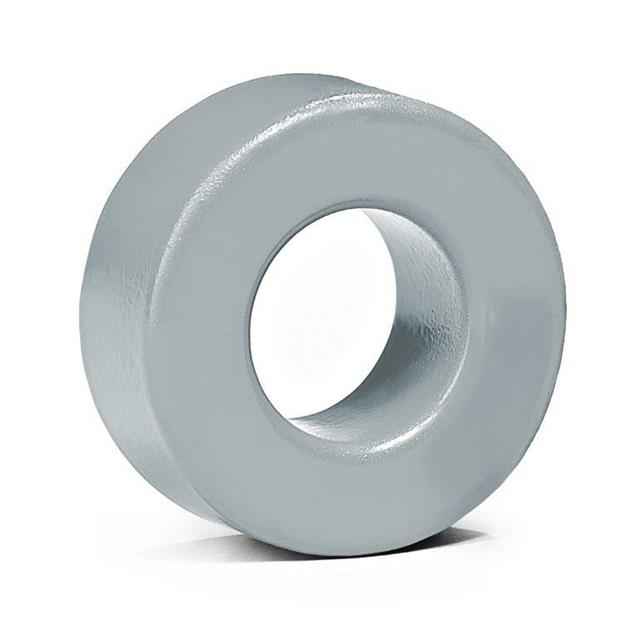

| Core Type | Toroid |
| Material | MPP |
| Diameter | 0.800" (20.32mm) |
| Inductance Factor (Al) | 7.8 nH |
| Tolerance | ±8% |
| Gap | Ungapped |
| Initial Permeability (µi) | 14 |
| Effective Length (le) mm | 50.9 |
| Effective Area (Ae) mm² | 22.1 |
| Effective Magnetic Volume (Ve) mm³ | 1120.0 |
| Finish | Coated |
| Height | 0.250" (6.35mm) |
